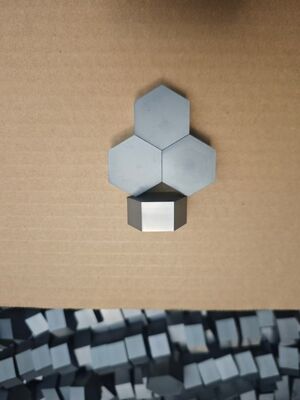

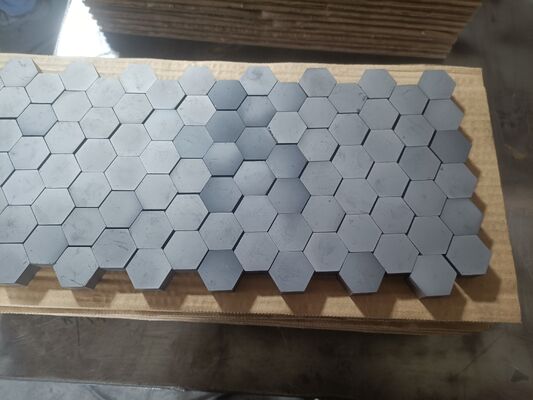

Cost Optimized Silicon Carbide Ballistic Tile NIJ Level III 100x100x8mm SiC Armor Plate
Détails sur le produit:
| Lieu d'origine: | Hunan, Chine |
| Nom de marque: | High Broad |
| Certification: | ISO 9001:2015, NIJ 0101.06 |
| Numéro de modèle: | tuiles sic |
| Documents: | SIC Ballistic Armor Tiles-P...ad.pdf |
Conditions de paiement et expédition:
| Quantité de commande min: | 200 kg |
|---|---|
| Prix: | USD20.00-40.00/kg |
| Détails d'emballage: | Emballé en vrac dans des plateaux en mousse EPE (25 dalles par plateau) + caisse en contreplaqué de |
| Délai de livraison: | 5-7 jours ouvrables pour le stock, 10-15 jours pour la production |
| Conditions de paiement: | T/T, L/C, Western Union |
| Capacité d'approvisionnement: | 80 000 pièces par mois |
|
Détail Infomation |
|||
| Résistance à la flexion: | 350-420 MPa | Taille des carreaux: | 100x100 mm |
|---|---|---|---|
| Résistance à la rupture: | 3,2-4,2 MPa·m½ | Épaisseur: | 8,0 mm |
| Densité en bits/pouce carré: | ≤36kg/m² | Densité: | 3,08-3,18 g/cm³ |
| Mettre en évidence: | Cost Optimized SiC Tile,Bulk Supply Ballistic Ceramic,NIJ III Industrial Grade Plate |
||
Description de produit
NIJ Level III | Industrial Grade | High Volume Production | Competitive Pricing
- High Volume Capability
- 80k Pieces/Month
- Batch Consistency Guaranteed
Our cost-optimized industrial grade SiC tile is purpose-built for high-volume armor programs. By utilizing industrial-grade SiC feedstock and our high-throughput atmospheric sintering line, we have narrowed the price gap between SiC and Al₂O₃ to within 15-25%—while delivering 70% higher hardness and 15-20% lower areal density.
For programs currently specifying Al₂O₃ tiles, upgrading to our cost-optimized SiC means better protection with minimal budget impact. For programs using B₄C, it represents an opportunity to reduce ceramic material costs by 50-60% while maintaining protection integrity.
| Material | Approx. Cost/Tile | Cost per 1000 Units | Savings vs Al₂O₃ Hardness Bonus |
|---|---|---|---|
| HB SiC (CG Grade) | $12-$22 | $12,000-$22,000 | +70% Hardness |
| Al₂O₃ (Standard) | $10-$18 | $10,000-$18,000 | Baseline |
| B₄C (Hot Pressed) | $35-$60 | $35,000-$60,000 | 3x Cost |
Our dedicated SiC armor tile production line can deliver up to 80,000 standard tiles per month with 15-day lead time for production orders, ensuring reliable supply for large-scale programs.
Every production batch undergoes SPC monitoring of key parameters (density, hardness, dimensions). Certificate of Analysis (CoA) provided with each shipment for full traceability.
Industrial-grade SiC powder with controlled particle size distribution ensures consistent sintering behavior and mechanical properties across production batches—critical for certified armor programs.
Available in 25-tile EPE foam trays or custom packaging configurations. Vacuum-sealed moisture barrier bags available for long-term storage requirements.
Upgrade your armor program to SiC—request a volume quote today
Email: janehu@hbnewmaterial.com | Batch samples available for evaluation
