150x150mm Large Format Silicon Carbide Ballistic Tile with NIJ Level III Protection and Pressureless Sintered SiC Strike Face Plate
Détails sur le produit:
| Lieu d'origine: | Hunan, Chine |
| Nom de marque: | High Broad |
| Certification: | ISO 9001:2015, NIJ 0101.06 |
| Numéro de modèle: | tuiles sic |
| Documents: | SIC Ballistic Armor Tiles-P...ad.pdf |
Conditions de paiement et expédition:
| Quantité de commande min: | 1000 pièces |
|---|---|
| Prix: | USD 0.1-1 / Piece |
| Détails d'emballage: | Entretoise en mousse EPE + sac antistatique scellé sous vide + étui en contreplaqué de qualité expor |
| Délai de livraison: | 5-7 jours ouvrables pour le stock, 15-20 jours pour la production |
| Conditions de paiement: | T/T, L/C, Western Union |
| Capacité d'approvisionnement: | 2000000 pièces par mois |
|
Détail Infomation |
|||
| Résistance à la flexion: | 380-450 MPa | Taille des carreaux: | 150x150mm |
|---|---|---|---|
| Densité en bits/pouce carré: | ≤37kg/m² | Résistance à la rupture: | 3,5-4,5 MPa·m½ |
| Épaisseur: | 8,0 mm | Densité: | 3,10-3,15 g/cm³ |
| Mettre en évidence: | Large Format SiC Tile,Reduced Seam Strike Face,NIJ III Large Ceramic Plate |
||
Description de produit

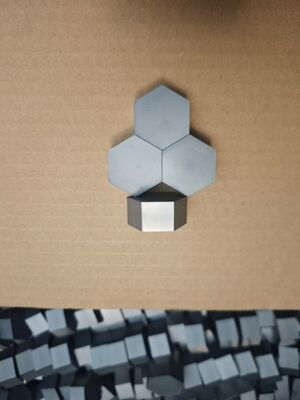

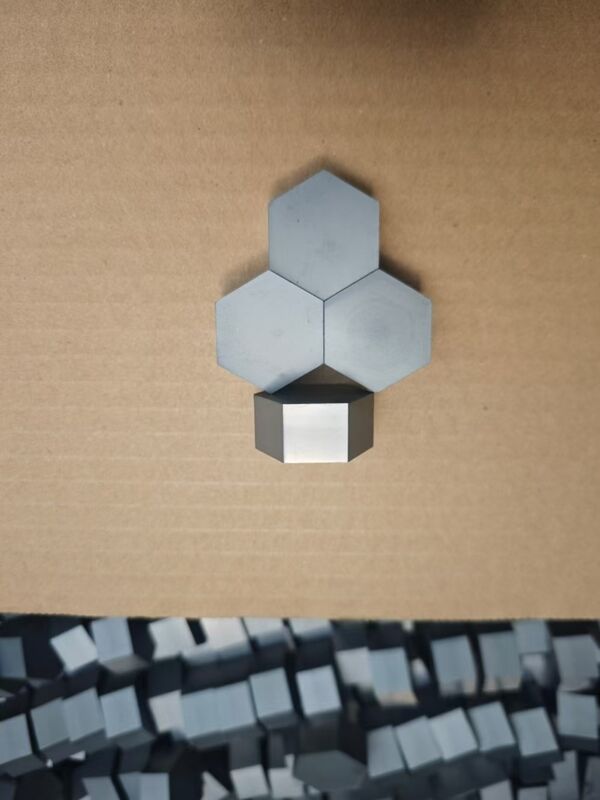

Large Format Silicon Carbide Ceramic Ballistic Tile Strike Face Plate NIJ Level III Protection 4.1 x 30mm Hex Shape SIC Tile
Large Format 150x150mm SiC Ballistic Strike Face Tile
NIJ Level III | 55% Fewer Seams | Enhanced Structural Integrity
- 150x150mm Format
- Reduced Seam Density
Why Larger Tiles Matter
In ceramic armor systems, seams between tiles represent the most vulnerable zones. Our 150x150mm large format tile covers 2.25x the area of a standard 100x100mm tile, reducing total seam length per square meter by approximately 55%. This directly translates to fewer weak points and a more structurally coherent strike face.
Large format SiC is technically achievable through pressureless sintering—unlike large format B4C which requires complex and expensive hot-press tooling, making our SiC tiles the practical choice for large-area protection.
Seam Density Comparison
| Tile Size | Tiles per m² | Seam Length per m² | Seam Reduction |
|---|---|---|---|
| HB 150x150mm | ~44 tiles | ~13.3 linear meters | Benchmark (Best) |
| Standard 100x100mm | ~100 tiles | ~20.0 linear meters | +50% more seams |
| Small 50x50mm | ~400 tiles | ~40.0 linear meters | +200% more seams |
Fewer Assembly Steps
Larger tiles mean 56% fewer pieces to handle per square meter, significantly reducing assembly labor and adhesive consumption in composite panel manufacturing.
Vehicle Armor Applications
The 150x150mm format is optimized for vehicle armor panels where large continuous coverage areas benefit most from reduced seam density and simplified installation.
B4C Large Format: Prohibitively Expensive
Hot-pressing B4C tiles larger than 100x100mm requires massive press tooling and yields high scrap rates due to thermal stress cracking. SiC pressureless sintering enables large format production at 40-50% lower cost.
Precision Edge Grinding
All edges are diamond-ground to ±0.3mm dimensional tolerance with 0.3mm x 45° chamfer, ensuring consistent gap spacing for professional composite lamination results.
Reduce seams, improve protection—order large format SiC tiles today
Email: janehu@hbnewmaterial.com
Custom dimensions up to 200x200mm available
Custom dimensions up to 200x200mm available
