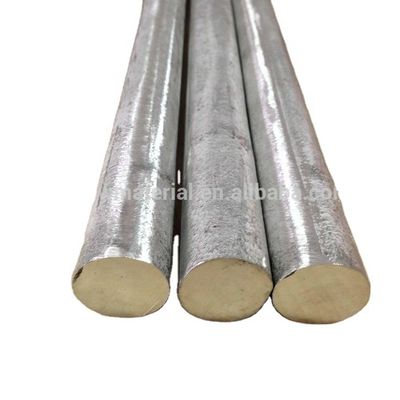

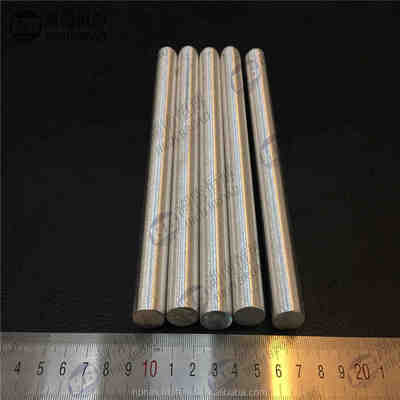

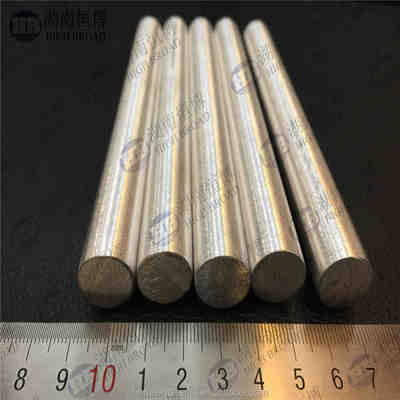

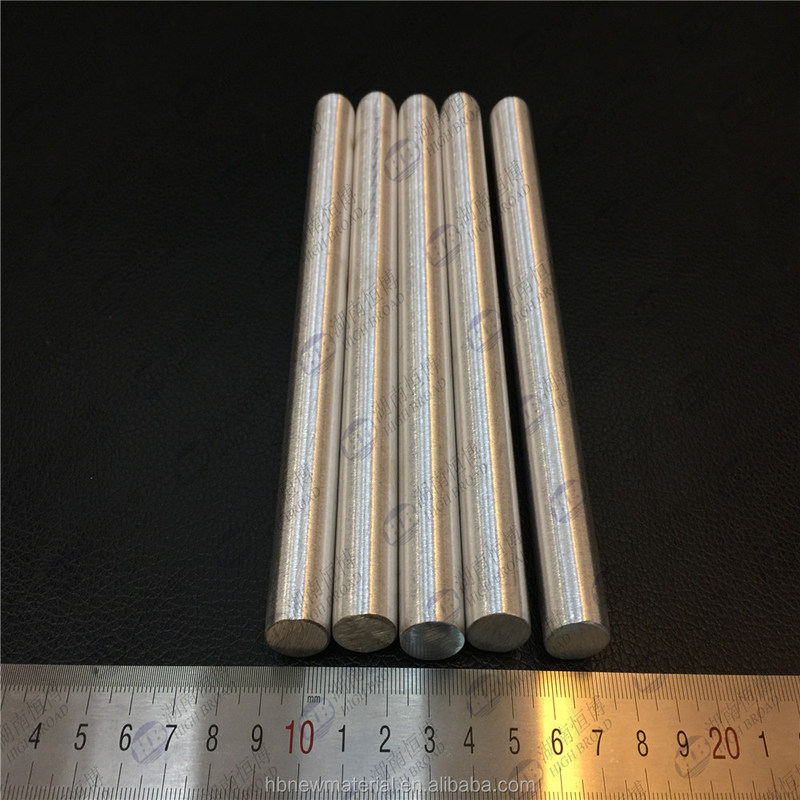

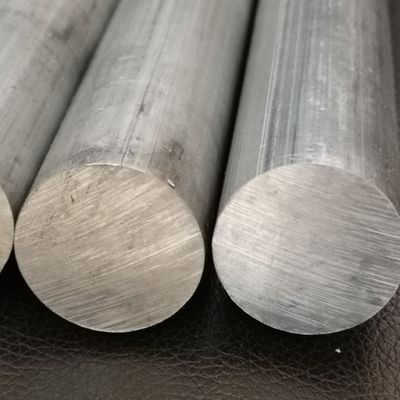

Industrial Magnesium Anode Rod with MgMnAlZn Alloy for Welding Applications in Customizable Shapes
Détails sur le produit:
| Lieu d'origine: | Hunan, Chine |
| Nom de marque: | High Broad |
| Certification: | ASTM G-97, ISO, DNV |
| Numéro de modèle: | fils de magnésium |
Conditions de paiement et expédition:
| Quantité de commande min: | 100 |
|---|---|
| Prix: | $50 |
|
Détail Infomation |
|||
| Composition chimique: | Mg | Matériel: | alliage de magnésium |
|---|---|---|---|
| Forme: | barre de tige, carré, forme de D, cylindre, barre, tige, ruban | Matériel chimique: | MgMnAlZn |
| Diamètre: | 8 mm | Commande minimale: | 100 kilogrammes |
| Capacité d'approvisionnement: | 300 tonnes métriques/tonnes métriques par mois | Délai de livraison: | 20-30 jours |
| Conditionnement: | Sur palette avec des faisceaux en acier | Tension à circuit ouvert: | 1,50-1,55 V (faible potentiel), 1,70-1,75 V (haut potentiel) |
| Tension en circuit fermé: | 1,45-1,5 V (faible potentiel), 1,57-1,62 V (haut potentiel) | Capacité réelle: | ≥1,105 AH/G (faible potentiel), ≥1,100 AH/G (haut potentiel) |
| Efficacité actuelle: | ≥50% | Plage de poids: | 1,4Kg à 27,2Kg |
| Dimensions: | Varie selon le modèle (voir les tableaux de spécifications) | ||
| Mettre en évidence: | MgMnAlZn alloy Magnesium Anode Rod,Welding application Magnesium Sacrificial Anode,Customizable shapes Industrial Magnesium Rod |
||
Description de produit
High-quality magnesium alloy rods designed for welding applications, offering excellent anti-corrosion properties and cathodic protection.
| Item Number | MIC, High potential, AZ63C, AZ31 |
| Features | Anti-corrosion/Cathodic protection |
| Materials | Magnesium alloy |
| Shape | Square, D shape, Cylinder, Bar, Rod, Ribbon |
| Standards | American standard, ASTM G-97 |
| Certificates | ASTM G-97, ISO, DNV |
| Place of Origin | China |
Magnesium anodes are used in:
- Ship equipment and building construction
- Port construction and sea projects
- Underneath pipeline protection
- Petroleum chemical fields
- Water boilers, heat exchangers, evaporators
They provide water softening, dirt removal, and extend container working life.
| Minimum Order QTY | 100 Kilograms |
| Payment Terms | L/C, T/T for bulk order, Western Union and Paypal for samples |
| Supply Ability | 300 Metric Ton/Metric Tons per Month |
| Delivery Time | 20 FCL: 20-30 Days (Depends on quantity) |
| Packaging details | On pallet with steel bundles |
| Element | High potential | AZ63B | AZ63C | AZ63D |
|---|---|---|---|---|
| Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
| Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
| Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
| Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
| Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
| Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
| Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
| Others each | 0.005 | --- | --- | --- |
| Others total | 0.30 | 0.30 | 0.30 | 0.30 |
| Mg | Balance | Balance | Balance | Balance |
| Model | Weight Kg (LB) | Specification of Anodes Inch (mm) | ||
|---|---|---|---|---|
| A | B | C | ||
| 3S3 | 1.4(3) | 3(76.2) | 3(76.2) | 4.5(114.3) |
| 5S3 | 2.3(5) | 3(76.2) | 3(76.2) | 7.5(190.5) |
| 9S2 | 4.1(9) | 2(50.8) | 2(50.8) | 27(685.8) |
| 17S2 | 7.7(17) | 2(50.8) | 2(50.8) | 51(1295.4) |
| 17S3 | 7.7(17) | 3(76.2) | 3(76.2) | 25.5(647.7) |
| 20S2 | 9.1(20) | 2(50.8) | 2(50.8) | 60(1524.0) |
| 32S3 | 14.5(32) | 3(76.2) | 3(76.2) | 45(1143.0) |
| 32S5 | 14.5(32) | 5(127.0) | 5(127.0) | 21(533.4) |
| 40S3 | 18.1(40) | 3(76.2) | 3(76.2) | 60(1524.0) |
| 48S5 | 21.8(48) | 5(127.0) | 5(127.0) | 31(787.4) |
| 60S4 | 27.2(60) | 4(101.6) | 4(101.6) | 60(1524.0) |
| 9S3 | 4.1(9) | 3(76.2) | 3(76.2) | 13.5(342.9) |
| Model | Weight Kg (LB) | Specification of Anodes Inch (mm) | ||
|---|---|---|---|---|
| A | B | C | ||
| 9D2 | 4.082(9) | 2 3/4(69.9) | 3(76.2) | 21 5/8(549.3) |
| 14D2 | 6.350(14) | 2 3/4(69.9) | 3(76.2) | 33 1/2(850.9) |
| 20D2 | 9.072(20) | 2 3/4(69.9) | 3(76.2) | 47 3/4(1212.9) |
| 9D3 | 4.08(9) | 3 1/2(88.9) | 3 3/4(95.3) | 13 7/8(352.4) |
| 17D3 | 7.711(17) | 3 1/2(88.9) | 3 3/4(95.3) | 25 1/4(641.4) |
| 32D5 | 14.515(32) | 5 1/2(139.7) | 5 3/4(146.1) | 19 7/8(504.8) |
| 48D5 | 21.772(48) | 5 1/2(139.7) | 5 3/4(146.1) | 30 1/8(765.2) |
| 1.5Kg | 1.5(3.5) | 3 3/20(80.0) | 2 3/4(70.0) | 7 1/2(190.0) |
| 2.5Kg | 2.5(5.5) | 3 3/20(80.0) | 2 3/4(70.0) | 11 4/5(300.0) |
| Model | Open-circuit voltage (-v) | Close-circuit voltage (-v) | Actual capacitance (A.H/G) | Current efficiency (%) |
|---|---|---|---|---|
| Mg anode with low potential AZ63 | 1.50-1.55 | 1.45-1.5 | ≥1.105 | ≥50 |
| Mg anode with high potential Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |
We are a professional anode supplier with over 16 years of experience, specializing in:
- Zinc anodes (ASTM B418-95 US MILL 18001K)
- Al-Zn-In anodes (GAIII)
- Magnesium anodes (ASTM-G97)
- High silicon cast iron anodes (ASTM-A518-3, BS1591)
Our products are shipped worldwide, with about 5000 metric tons annually. We maintain strict quality control with independent third-party testing in the USA. With direct access to raw material resources, we offer competitive pricing and can customize anodes according to your specifications.
Materials contents (Chemical Compositions) and the size of models. Special structures with drawing. Quantity and delivery trade items.
Welcome to visit us in China. Hopefully it will be a happy journey here.
Quality is the foundation of our company. We have been working in new materials industry for more than 20 years.
Magnesium anodes are used in the technical method of electrochemistry cathode protection. The theory is that when connected with the protected metal body, with the exhausting and dissolving of negative metal material or alloy, the protective current body will be protected from corrosion. Mg anode can produce higher quality potential power, making it ideal sacrificial material.
