Extruded Magnesium Anode Ribbon M1C High Potential for Cathodic Protection with Customized Shape and Superior Electrochemical Properties
Détails sur le produit:
| Lieu d'origine: | Hunan, Chine |
| Nom de marque: | HIGH BROAD Magnesium anode manufacture |
| Numéro de modèle: | HP AZ |
Conditions de paiement et expédition:
| Quantité de commande min: | 100 |
|---|
|
Détail Infomation |
|||
| Composition chimique: | Magnésium Aluminium Zinc | Matériel: | Alliage de magnésium AZ63 |
|---|---|---|---|
| Forme: | Ruban personnalisé | Tension à circuit ouvert: | 1,70-1,75 V (potentiel élevé) |
| Tension en circuit fermé: | 1,57-1,62 V (potentiel élevé) | Capacité réelle: | ≥1,100 Ah/g (potentiel élevé) |
| Efficacité actuelle: | ≥50 % (Potentiel élevé) | Contenu en aluminium: | 5,30-6,70 % (AZ63B) |
| Contenu du zinc: | 2,50-3,50 % (AZ63B) | Contenu de manganèse: | 0,15-0,70 % (AZ63B) |
| Silicium max: | 0,10 % (AZ63B) | Cuivre Max: | 0,02% (AZ63B) |
| Nickel Max: | 0,002 % (AZ63B) | Fer Max: | 0,005 % (AZ63B) |
| Autres éléments maximum: | 0,30% au total | ||
| Mettre en évidence: | Customized Shape Magnesium Anode Ribbon,Electrochemical Properties Extruded Magnesium Anode,M1C Sacrificial Magnesium Anode |
||
Description de produit

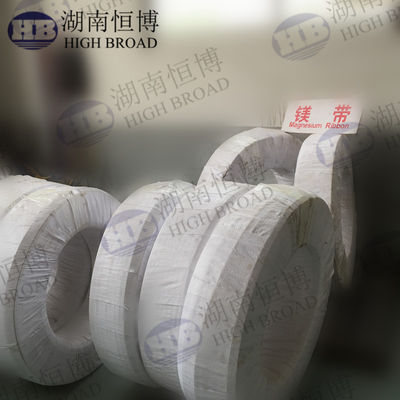

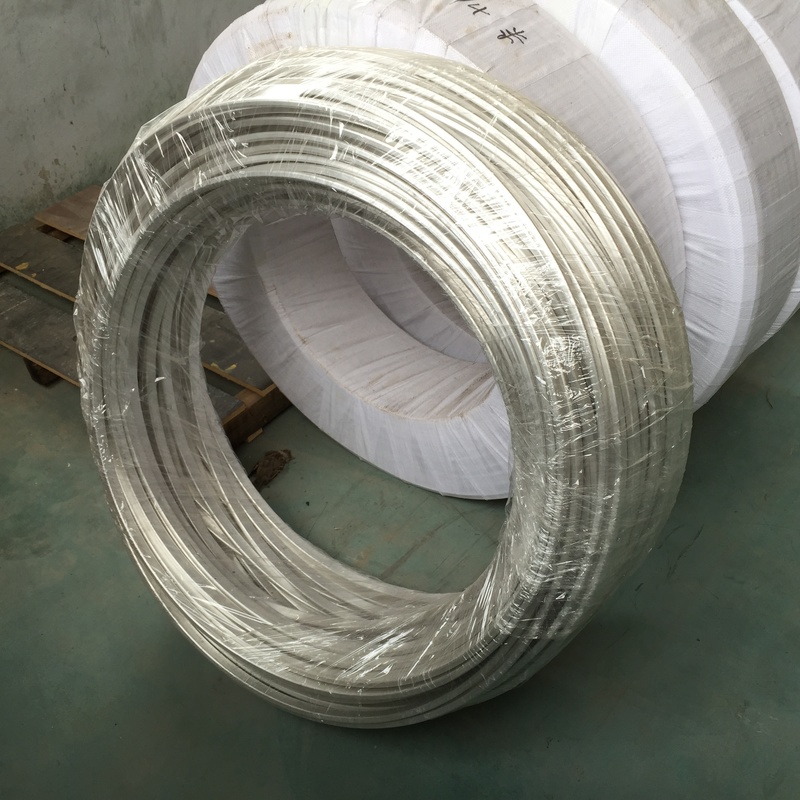

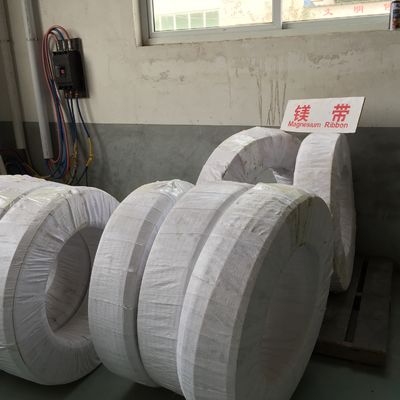

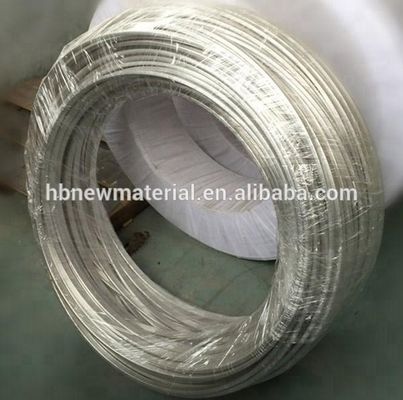

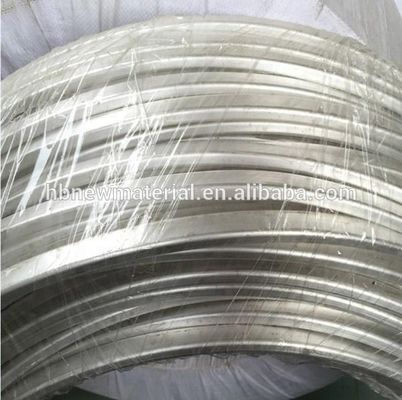

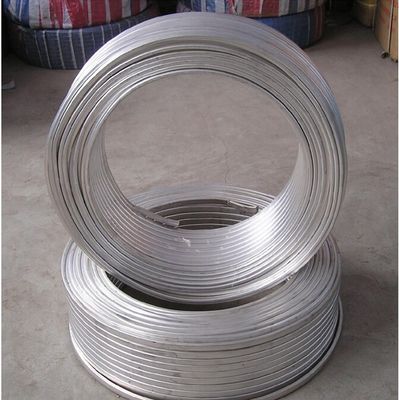

Magnesium Anode Ribbons High Potential M1C
Extruded Magnesium Anode Ribbon for Cathodic Protection | ASTM standard produced and tested
The corrosion of metal material in seawater, lakes, or soil can be prevented using electrochemical cathodic protection with magnesium anodes. This method works by connecting the negative current of a metal material or alloy to the protected metal body. As the sacrificial metal dissolves, protective current is transferred to the protected metal body, preventing corrosion. Widely used in shipbuilding, port construction, marine engineering, underground pipelines, petrochemical, power generation, and municipal applications.
Chemical Compositions of Cast Magnesium Anodes (%)
| Element | High Potential | AZ63B | AZ63C | AZ63D |
|---|---|---|---|---|
| Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
| Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
| Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
| Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
| Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
| Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
| Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
| Others each | 0.05 | --- | -- | --- |
| Others total | 0.30 | 0.30 | 0.30 | 0.30 |
Electrochemical Properties of Cast Magnesium Anodes
| Item | Open-circuit Voltage (-V) | Close-circuit Voltage (-V) | Actual Capacitance (A.h/g) | Current Efficiency (%) |
|---|---|---|---|---|
| High Potential | 1.70-1.75 | 1.57-1.62 | ≥ 1.100 | ≥ 50 |
| Low Potential (AZ63) | 1.50-1.55 | 1.45-1.50 | ≥ 1.105 | ≥ 50 |
Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE)
